Top 5 Ductless Mini‑Split Systems for Data Centers and Server Rooms

Facility managers and IT infrastructure engineers know that precision cooling is the lifeblood of safe, reliable data centers. Unlike standard comfort AC, server room cooling must run 24×7×365 – even in winter – to dissipate constant heat loads while maintaining tight temperature and humidity limits. Ductless mini-split systems have emerged as cost-effective solutions for IDF/MDF rooms and even supplemental cooling in large data centers, thanks to their high efficiency, flexible installation, and independent zoninggreecomfort.com greecomfort.com. But not all mini-splits are up to the task. Below we rank the top 5 ductless mini-split systems (available in the U.S.) that excel in mission-critical cooling. Each is evaluated on 6 key categories (1–10 points each, 60 points total):

Cooling Performance – Sensible BTU capacity, low-ambient operation, and dehumidification capability.
Redundancy & Reliability – Options for N+1 backup, failover control, and proven 24/7 uptime track record.
Energy Efficiency – SEER/EER ratings, inverter technology, and ENERGY STAR® status.
Integration & Monitoring – Support for building management systems (BACnet/Modbus), remote monitoring, smart alerts.
Certifications & Safety – UL listing, ASHRAE TC 9.9 compliance (thermal guidelines), refrigerant safety (e.g. low GWP), etc.
Value for Data Center Use – Cost-to-performance ratio, lifecycle/maintenance costs, and ROI in uptime protection.

Let’s dive into the 🥇 gold-medal winner and four runners-up, complete with scoring breakdowns, specs, pros/cons, and ideal use cases. In the end, we’ll compare them side-by-side and offer a 🧭 Mini-Split Selection Guide for your unique data environment.

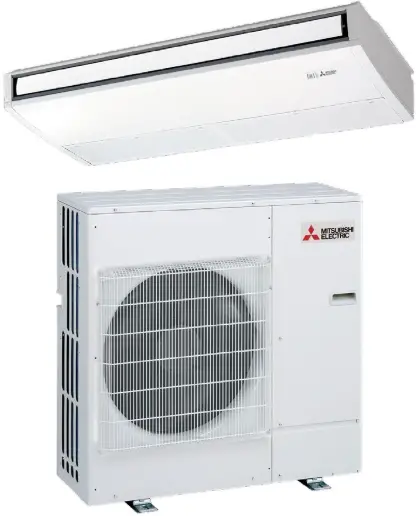

🥇 Mitsubishi Electric P-Series (Mr. Slim) – Low-Temp Champ for Mission Critical Cooling

Score Breakdown (out of 10):

Cooling Performance: 10/10
Redundancy & Reliability: 9/10
Energy Efficiency: 9/10
Integration & Monitoring: 9/10
Certifications & Safety: 10/10
Value for Data Center Use: 9/10
Total Score: 56/60

Mitsubishi Electric’s P-Series commercial mini-splits earn the top spot for their exceptional low-temperature cooling and rock-solid reliability in server rooms. These systems are designed for year-round, low-ambient cooling – a must for IT environmentsdevice.report. With models ranging from ~12,000 up to 42,000 BTU/h (1–3.5 ton) capacity, a single P-Series split can handle most mid-size server rooms or network closets. For larger loads, multiple units can be deployed in parallel with lead-lag control for N+1 redundancy.

Cooling Specs & Performance: P-Series units feature inverter-driven compressors and advanced metering that deliver very high sensible cooling capacity even at low outdoor temperatures. In fact, Mitsubishi’s low-ambient configurations (with factory or field-installed wind baffles) can cool in outdoor temps down to –20 °Fnetrinc.com. This ultra-low ambient capability is achieved via a special condenser design with triple wind baffles to maintain high refrigerant pressure in frigid conditionsnetrinc.com. The result is dependable cooling even during harsh winters – as demonstrated at a Massachusetts data firm that upgraded to Mitsubishi ductless units specifically for their “–20 °F low-ambient kit” performancenetrinc.com netrinc.com. These systems also excel at humidity control; the microprocessor controls monitor and modulate coil temperature to dehumidify as needed, keeping server rooms within safe moisture levelsnetrinc.com. Cooling is delivered via various indoor unit styles (wall-mount, ceiling cassette, etc.), all with auto-swing louvers to distribute cold air evenly.

Redundancy & Reliability: Mitsubishi is a gold standard in HVAC reliability, and the P-Series is built for continuous duty. Many facilities install dual units per room – one active and one standby – to ensure redundancy. The P-Series supports this with simple lead/lag configurations: e.g. one unit set a couple degrees warmer as backup, or using an external controller to alternate units weekly. In one case study, two P-Series units were configured in an automatic lead-lag schedule: one maintained 66 °F while the other idled at 67 °F, so if the primary faltered or demand spiked, the secondary kicked innetrinc.com. This arrangement protects servers from overheating and also extends equipment life by sharing the 24/7 loadnetrinc.com. It’s a testament to Mitsubishi’s reliability that such setups run for years with minimal downtime. The outdoor condensers feature base-pan heaters and advanced defrost controls (in heat pump models) to prevent frost, and anti-corrosion coatings for long service life. In mission-critical sites, many P-Series units have been known to run continuously for 10+ years. Mitsubishi backs their quality with up to 10-year compressor and parts warranties (when installed by authorized contractors) – standard commercial warranty is 5-year parts, 7-year compressor, extendable to 10/10mitsubishitechinfo.ca bostonstandardplumbing.com.

Energy Efficiency: These systems combine high sensible capacity with impressive efficiency. The latest P-Series models (now leveraging R454B or R410A refrigerant) achieve SEER2 ratings over 20 and EER around 12hvacdirect.com, making them among the most efficient in their class. Variable-speed inverter technology ensures they only draw the power needed to meet the cooling load, which significantly lowers energy use in partial-load conditionsdevice.report. Many P-Series units are ENERGY STAR® certified (especially in the lower capacities), reflecting their top-tier performance. For data center operators concerned with PUE, Mitsubishi mini-splits help keep cooling energy to a minimum while still providing precise environment controlus.mitsubishielectric.com us.mitsubishielectric.com. The high EER (full-load efficiency) is also beneficial for steady 24/7 operation common in server roomsacwholesalers.com. In short, you get excellent cooling per watt – and that translates to lower utility bills for year-round AC.

Integration & Monitoring: Mitsubishi offers a robust range of control integration options for the P-Series. Indoor units come with IR remote and wall thermostats, but more importantly for facility integration, Mitsubishi provides interfaces for BACnet/IP and Modbus connectivity. With add-on adapters like the PAC-UKPRC001 or the MELCOBEMS modules, a P-Series unit can be monitored and controlled by a building management system or data center infrastructure management (DCIM) platformshop.rfwel.com. This allows you to read temperatures, adjust setpoints, and get alarm signals (e.g. in case of a fault) centrally. In fact, Mitsubishi’s commercial controllers (e.g. AE-200, AE-200A) and cloud-based systems can tie together multiple units for coordinated control across a facilitydaikincomfort.com daikincomfort.com. Even without a BMS, these mini-splits have auto-restart after power loss and can be wired to send a dry-contact alarm to your monitoring system. For example, many sites simply use a temperature sensor and SNMP trap to detect if the room goes above threshold – but Mitsubishi’s own hardware makes it possible to integrate more directly. The precision digital controls also maintain very stable temperatures (within a couple degrees of setpoint), which aligns with ASHRAE TC 9.9 guidelines for recommended server inlet temperature range. In sum, the P-Series can be as “smart” as you need – from simple standalone thermostat control to fully networked operation.

Certifications & Safety: Mitsubishi P-Series units are UL-listed (UL 1995/60335) for electrical and fire safety, and use R-410A refrigerant in most models (an A1 safety-class refrigerant – non-flammable). Newer variants are transitioning to R-32 or R-454B, which have lower GWP; these refrigerants are ASHRAE A2L class (mildly flammable), but systems are engineered with appropriate safeties (leak detectors not required at mini-split charge sizes). The indoor units have condensate pumps or gravity drains to safely remove water (preventing leaks onto equipment). Notably, the P-Series meets the demands of ASHRAE TC 9.9 data center cooling: it can hold temperature setpoints in the recommended 18–27 °C (64–80 °F) range and maintain humidity control to prevent condensation or electrostatic issuesnetrinc.com. Many models also carry ENERGY STAR certifications and are compliant with DOE efficiency standards nationwide. In terms of sound, they operate fairly quietly (indoor ~40–46 dB, outdoor ~55 dB at full load), helping maintain a comfortable noise level in nearby office spaces. Overall, Mitsubishi checks all the safety and compliance boxes, giving peace of mind when deploying them in critical environments.

Value for Data Center Use: While Mitsubishi P-Series units come at a premium price point, their performance and reliability yield a strong ROI in uptime. The cost-to-BTU ratio is higher than off-brand units, but you truly get what you pay for – expect long-term durability and fewer emergency repairs. Maintenance is straightforward: quarterly filter cleanings and annual professional check-ups (e.g. coil cleaning, refrigerant check) will keep them running optimally. Parts availability in the U.S. is excellent (Mitsubishi Electric has a large distributor and service network in North America), minimizing downtime if something needs fixing. The efficient operation also means lower electrical costs, and if you participate in energy rebate programs, many utilities recognize high-SEER equipment with incentives. Considering the potential cost of server downtime, investing in a top-quality cooling unit is easily justified. The Mitsubishi P-Series delivers value by maximizing uptime – as one example, a company noted that with redundant P-Series minis, their server room stays fully functional even in extreme winter cold or if one unit needs servicingnetrinc.com netrinc.com. That kind of resilience can save thousands (or more) by averting outages. Additionally, the P-Series’ flexibility (multiple indoor unit styles, long refrigerant line lengths up to ~165 ft, and ability to run on 208–230 V single-phase typical in commercial buildings) makes it adaptable to various facility layouts without costly construction – further adding to its value proposition.

Pros:

Exceptional Low-Temp Cooling: Operates in cooling mode down to –20 °F with low-ambient kit (best in class)netrinc.com. Keeps servers cool even during frigid winters.
Proven 24/7 Reliability: Industrial-grade build for continuous operation; multiple units can be set up in lead-lag for redundancynetrinc.com. Mitsubishi’s track record in mission-critical HVAC is excellent.
High Efficiency: Inverter-driven compressor with SEER2 ~20–22 and EER ~12hvacdirect.com. Many models are ENERGY STAR certified, reducing energy costs for around-the-clock cooling.
Rich Integration Options: Supports advanced controls – e.g. BACnet/Modbus interface for BMSshop.rfwel.com, centralized controllers, and auto-restart with error alerts. Easy to monitor and manage remotely.
Certified & Compliant: UL-listed, with safe refrigerants (A1 or A2L) and ability to maintain ASHRAE-recommended temperature/humidity ranges for IT equipmentdevice.report netrinc.com. Long warranty (up to 10 years) reflects quality.

Cons:

Higher Upfront Cost: Premium hardware and features come at a higher price than some competitors. Initial investment is substantial, though offset by longevity and efficiency.
Professional Installation Required: These are not DIY units; you need certified HVAC installers (preferably Mitsubishi Diamond Contractors) to ensure proper setup, especially for low-ambient kits and BMS integration.
Periodic Maintenance Needed: Like all mini-splits, filters must be cleaned frequently (dust buildup can reduce cooling). Condenser coils should be kept clean for best performance – a maintenance plan is recommended for critical use.
Limited Built-in Redundancy: While you can install multiple units for redundancy, the system itself doesn’t have an internal backup compressor. Redundancy requires deploying two units (which doubles cost). No native “alternating” controller included (third-party or manual setup needed for lead-lag, unlike some competitors’ server room modes).

Ideal Applications: Mid-sized server rooms, network closets, and edge data centers requiring ultra-reliable, year-round cooling. Perfect for scenarios where outdoor temps can drop below freezing – e.g. northern climates – thanks to its low-ambient capability. Also a top choice for any mission-critical facility (banking, healthcare IT, telecom) that values proven performance and integration. The P-Series shines in retrofits of older CRAC units, freeing up floor space (wall or ceiling-mounted indoor units)us.mitsubishielectric.com. It’s equally adept in large data centers as supplemental cooling for hot spots or as an independent cooling zone for UPS/battery rooms. Overall, choose Mitsubishi P-Series when downtime is not an option and you need a trusted cooling workhorse to protect your equipment 24/7.

🥈 Fujitsu Airstage Single-Zone (XLTH) – Smart Redundancy with Server Room Mode

Score Breakdown (out of 10):

Cooling Performance: 9/10
Redundancy & Reliability: 10/10
Energy Efficiency: 8/10
Integration & Monitoring: 8/10
Certifications & Safety: 9/10
Value for Data Center Use: 9/10
Total Score: 53/60

Taking the silver medal is Fujitsu’s Airstage single-room mini-split lineup, particularly their XLTH series heat pump systems, which are engineered for continuous cooling in cold climates. Fujitsu’s units stand out for a unique feature directly targeting IT applications: “Server Room Mode.” This built-in functionality allows two identical systems to work in tandem with automatic alternating and backup operation – delivering true redundancy without external controllersecomfort.com. Combined with strong low-ambient performance and a reputation for efficiency, Fujitsu offers an extremely resilient cooling solution for server environments.

Cooling Specs & Performance: Fujitsu’s single-zone Airstage minis are available from ~9,000 BTU up to 48,000 BTU (0.75 to 4 tons), covering small network closets up to larger server rooms. These systems use DC inverter compressors and are optimized for high sensible cooling output. The XLTH (Extra Low Temperature Heating) outdoor units come standard with enhancements for cold weather operation, which also benefit cooling mode. For example, models like the 30RLXEH can maintain stable operation in outdoor temperatures as low as –15 °Fecomfort.com. (They include a base-pan heater and cold-weather firmware to prevent frost even when cooling at subzero outdoor temps.) Fujitsu explicitly markets these units as ideal for “applications where constant cool temperatures are required year-round, such as server rooms”ecomfort.com. The indoor units (wall-mounted or ceiling cassette) provide 4-way airflow and have powerful fans to push cold air across larger rooms. Fujitsu also incorporates an effective dry mode and dehumidification logic, which increases moisture removal when cooling loads are low – helpful for keeping humidity in check if server loads drop overnightecomfort.com. While the cooling capacity is high, the soft-start inverter means the units ramp up gradually, avoiding sudden swings and maintaining very tight temperature control (often ±1–2 °F of setpoint). Overall, Fujitsu’s cooling performance is more than capable of meeting ASHRAE TC 9.9 recommended conditions for inlet air, even under continuous heavy IT loads.

Redundancy & Reliability: This is where Fujitsu truly shines. Their Server Room Mode is a killer feature for reliability – essentially providing a native lead-lag and failover system. In this mode, two identical mini-split systems are interconnected (via control wiring) and can run in one of three modes: Alternating Operation, Backup Operation, or Supporting Operationecomfort.com. In Alternating mode, the two units periodically swap roles as the primary cooler, balancing runtime and wear. In Backup mode, one unit runs continuously and the second remains on standby, only activating if the primary fails or can’t keep up. Supporting mode allows both to run together during peak loads, but one will take over if the other stops. This flexibility is tremendous for a mini-split – it essentially gives you N+1 redundancy with automated failover, without needing an external PLC or manual intervention. The system even has an error/lockout interlock so if one unit goes down, the other ramps up to full capacity immediately. Fujitsu’s reliability is bolstered by features like blue-fin anti-corrosion coating on the outdoor coil (for longer life)ecomfort.com, and comprehensive self-diagnostics. The compressor and electronics are protected by built-in voltage sensors and surge protection. In practice, Fujitsu units are known to be very durable; many data closet installations report trouble-free operation for years. Standard warranty is 5 years parts, 7 years compressor, and if installed by a Fujitsu Elite contractor and registered, you can get 10-year or even 12-year warranty on parts/compressortwincitiesairconditioner.com fujitsugeneral.com – reflecting the confidence in their reliability. The redundancy of Server Room Mode, combined with Fujitsu’s solid hardware, earns a perfect 10 in this category. It’s like having a mini-CRAC system that has a built-in spare.

Energy Efficiency: Fujitsu offers high efficiency, though at the largest sizes the SEER ratings are a bit lower than some peers. Their mid-sized units (e.g. 12k–18k BTU) can achieve SEER well into the mid-20s (and many carry ENERGY STAR). The 30RLXEH 30k BTU model, for instance, is rated about 18.7 SEER2 (which roughly corresponds to ~21–22 SEER in older metrics)ecomfort.com ecomfort.com. EER2 is around the 11–12 range for these models, indicating respectable full-load efficiency. Fujitsu’s focus for the server room units is slightly biased toward robustness over sheer SEER, so you might find competitors with marginally higher SEER numbers in equivalent sizes. However, the difference in real-world data center operation is minor, since these units often run at part-load where the inverter saves energy. Fujitsu units also have an Economy mode option that can cap the maximum power to save energy during lighter loadsecomfort.com. During cooling, this mode increases dehumidification as well – a nice efficiency trick since removing latent heat can make occupants feel cooler at a higher temperature setpoint. All Fujitsu minis use inverter fans and compressors, so they modulate smoothly and avoid on-off cycling losses. Additionally, Fujitsu has embraced more eco-friendly refrigerants early – some smaller units use R32 overseas, though U.S. models like XLTH still use R-410A (zero ozone depletion, A1 safety). The overall efficiency is very good and more than sufficient to meet ASHRAE standards and many utility rebate thresholds. We scored it slightly lower than Mitsubishi/Daikin simply because their largest units aren’t quite as ultra-high SEER. But given the mission-critical application, the slight trade-off in efficiency is in service of higher sensible cooling and redundancy. And importantly, two Fujitsu units in alternating mode can run at lower individual loads, boosting each unit’s efficiency and providing redundancy for only marginally more energy – a smart strategy for energy and uptime.

Integration & Monitoring: Fujitsu mini-splits come with a standard IR remote and wall-mounted wired controller options. For integration, Fujitsu offers a few solutions. They have a network adapter (Fujitsu Dry Contact Wire or Intesis gateway) that can interface the unit with third-party thermostats or alarm systems – for instance, you can wire an alarm output from the indoor unit to trigger if a fault occurs (many Fujitsu indoor boards have terminals for fault indication). While not as plug-and-play BMS-friendly as Mitsubishi or Daikin, there are BACnet gateways available (HMS and others make interfaces for Fujitsu) that can bring these units onto a BACnet/IP or Modbus network similar to othershms-networks.com. The marquee integration feature, of course, is Server Room Mode’s controller: the two units share data to coordinate operation without an external BMSecomfort.com. This controller setup can also be tied to a building alarm – e.g. a common alarm if both units fault – giving you an immediate notification. Fujitsu’s newer Airstage systems can also be outfitted with a Wi-Fi module (for example, the FJ-IR-WIFI-1 device on smaller units) to allow basic cloud monitoring via the FGLair app, but for a professional setting, one would more likely use a wired remote with monitoring. The wired remotes (like Fujitsu’s touch panel controller) allow scheduling and have error code displays, making maintenance easier. While Fujitsu doesn’t have as extensive a centralized control lineup as some competitors, they do support central controllers in multi-zone installations (mostly in their VRF line). For a single-zone mini-split, typical integration would be: set it to Server Mode with its partner, and use a sensor in the room tied to your BMS purely to monitor temp and send alerts if temp rises beyond tolerance. Given the stability of these units, that’s usually sufficient. They meet ASHRAE TC 9.9 guidelines for monitoring as long as you have temperature sensors in place (which any data center would). We give integration a solid score – not the highest only because the out-of-box BACnet integration requires third-party hardware. On the safety front, Fujitsu units are UL-listed and have protections like automatic shutdown on high head pressure or loss of refrigerant, which adds to peace of mind.

Certifications & Safety: Fujitsu’s systems check all major certifications. They are AHRI certified for performance, UL certified for safety, and meet the latest DOE efficiency standards (Region IV). Many models are ENERGY STAR® qualified, especially in the popular 9k–24k BTU sizes. The units comply with California Title 24 requirements when paired with the proper controllers. In a server room context, a key “safety” factor is ensuring the cooling keeps running – Fujitsu’s dual-unit setup inherently is a safety net against thermal runaway. From a refrigerant safety perspective, the use of R-410A means no flammability concerns (A1 refrigerant). If/when Fujitsu moves to R-32 in these systems, they will incorporate the usual mitigations for A2L, but as of now, that’s not an issue. The indoor units have condensate pumps available, with overflow protection, to prevent water leaks. Noise-wise, Fujitsu mini-splits are very quiet on the indoor side (often ~26–40 dB depending on fan speed, which is library-level quiet at low fan). This is great if the server room is adjacent to an office or if someone has to work in the room occasionally. On the outdoor side, noise is moderate (~55–58 dB), typical for mini-splits, and most have a night quiet mode if needed. The sensible heat ratio (SHR) of these units is high – meaning most of their cooling capacity goes to sensible cooling (dry-bulb temperature) rather than latent. That’s desirable for data centers, which have high sensible heat loads. Fujitsu actually highlights the high SHR as a cost-saving, since you’re not overcooling or dehumidifying unnecessarilyvertiv.com (that quote was about another system but applies here too). All in all, Fujitsu meets the necessary safety and certification marks, with an extra nod to purpose-built server room operation that aligns perfectly with data center best practices.

Value for Data Center Use: Fujitsu offers an excellent value proposition, particularly when considering the built-in redundancy. You effectively get a redundant cooling setup at a lower total cost than some dedicated precision AC systems. While a single Fujitsu mini-split is priced similarly to other top brands, the true value is in the avoided cost of external controllers or additional backup systems – Server Room Mode means you can ensure uptime without buying a separate PLC or control logic. The life-cycle cost is attractive: these inverter systems sip power at partial loads and require only routine maintenance (filter cleans, etc.). Over a 10-year span, the combination of energy savings and reduced risk of downtime yields a strong ROI. If you’re comparing against, say, a Liebert CRAC unit for a small server room, Fujitsu mini-splits are often tens of thousands of dollars cheaper upfront, and far cheaper to run. They also free up floor space (wall or ceiling mount vs. a floor CRAC) which in a cramped server room is valuable. Another aspect of value is ease of service – Fujitsu has a solid distribution of parts and many HVAC contractors are familiar with them, ensuring that if something does go wrong, repairs can be made quickly (plus that generous warranty if properly registered). Their cost-performance ratio is high: you get advanced features (inverter, low-ambient, redundancy) at a price that’s very competitive. We scored value 9/10, as Fujitsu might be slightly less expensive than the Mitsubishi/Daikin options for similar capacity. One more angle: using Fujitsu’s alternating mode can potentially extend the usable life of both units (since each runs half the time), further improving the long-term value – essentially you double the lifespan in calendar years, which could mean deferring capital replacement costs. In summary, Fujitsu delivers peace of mind and efficiency without breaking the budget, a combination that’s hard to beat.

Pros:

Built-In Redundancy: Unique Server Room Mode lets two units alternate or back each other up automaticallyecomfort.com. No external controls needed for failover – huge reliability advantage for critical cooling.
Cold-Climate Ready: XLTH models operate in cooling mode down to –15 °F outdoor temp with base pan heatersecomfort.com. Designed for year-round cooling in any season, keeping data halls cool even in winter storms.
Stable, Precise Cooling: Inverter technology and high sensible capacity maintain very steady temperatures. Great dehumidification control in cooling (with dry mode), preventing humidity spikes.
Durable & Long Warranty: Blue-fin anti-corrosion coils and quality components ensure longevityecomfort.com. Standard 5/7-year warranty, extendable up to 10–12 years with registrationtwincitiesairconditioner.com – indicating strong manufacturer confidence.
Strong Value: Offers near-CRAC level performance at mini-split pricing. Redundant cooling can be achieved more affordably versus specialized data center AC units. High efficiency saves on operating costs too.

Cons:

Integration Requires Extras: Native BMS integration (BACnet/Modbus) isn’t as direct – may require third-party gateway or dry-contact wiring. Lacks the sophisticated central controllers out-of-box that some competitors provide for large networks of units.
Slightly Lower SEER at Top End: Some large Fujitsu models have lower SEER than Mitsubishi/Daikin equivalents (e.g. ~18–19 SEER2). Efficiency is still good, but not the absolute highest in class.
Contractor Expertise: Fujitsu’s server room mode feature, while excellent, might be less known to generic HVAC installers. It’s best to use an Elite Fujitsu installer to set up the paired operation correctly. Training or guidance may be needed to ensure the mode is configured properly.
Limited Indoor Unit Styles: Fujitsu’s single-zone lineup is mostly wall-mounted or slim cassette units. If you need a larger ceiling-mounted blower or air handler integration, options are fewer than some brands (though they do offer some ducted units in this range).

Ideal Applications: Small to medium server rooms, network and telecom rooms, and remote sites where downtime is unacceptable but budgets are tight. Fujitsu mini-splits are perfect for organizations that want automatic backup cooling without investing in complex control systems – for example, a regional bank’s data room or a hospital IT closet could deploy two Fujitsus in Server Room Mode for worry-free cooling. They are also well-suited to colder climates or high-altitude installations (mountain telecom huts, etc.) given their low-ambient performance. Additionally, any scenario requiring continuous cooling with minimal oversight – say a university’s network hub – can benefit from Fujitsu’s self-managing redundancy. It’s a top choice when you need redundant, efficient cooling on a budget.

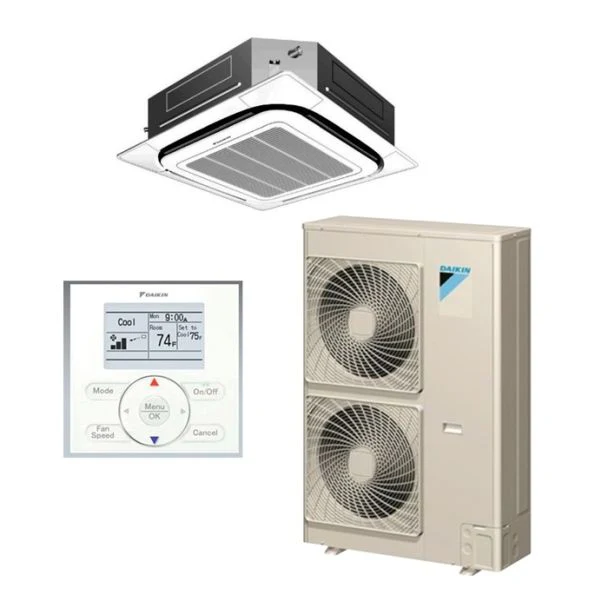

🥉 Daikin SkyAir & VRV Single-Zone Systems – Versatile Powerhouse with BMS Smarts

Score Breakdown (out of 10):

Cooling Performance: 9/10
Redundancy & Reliability: 8/10
Energy Efficiency: 10/10
Integration & Monitoring: 10/10
Certifications & Safety: 9/10
Value for Data Center Use: 8/10
Total Score: 54/60

Earning the bronze, Daikin brings its global HVAC leadership to data center cooling with the SkyAir series (light commercial ductless systems) and small VRV (Variable Refrigerant Volume) systems. Daikin’s mini-splits are known for top-tier efficiency and seamless integration capabilities. While not marketed exclusively for server rooms, their features align extremely well with IT cooling needs – especially in terms of intelligent controls and scalable configurations. Daikin offers a wide range of capacities (from ~9,000 BTU minis up to multi-zone 5-ton systems) that can serve everything from a single IDF closet to a larger data center whitespace with multiple zones.

Cooling Specs & Performance: Daikin’s single-zone SkyAir systems typically range from 12,000 to 48,000 BTU (1–4 tons), and they also offer multi-zone VRV “S-Series” systems up to 5 tons (60,000 BTU) that can connect 3–5 indoor unitsdaikincomfort.com. This gives tremendous flexibility – for example, you might use a 3-ton unit for a server room, or a 5-ton multi-split to cool a few adjacent equipment rooms with one outdoor unit. In terms of performance, Daikin units are highly engineered for both cooling and heating. Many SkyAir models have cooling-only versions (no heat pump) ideal for data centers. They are rated for continuous cooling even at low ambient temperatures – typically down to ~0 °F without additional kits, and with optional low-ambient wind baffle kits they can go below zero (common field practice for Daikin in server closets). In fact, Daikin offers specific Low Ambient Cooling Kits to maintain proper head pressure when outdoor temps dropbudgetheating.com, allowing their standard units to safely cool in winter. Once equipped, these systems handle sub-freezing conditions with ease, ensuring year-round cooling availability. On the high side, Daikin units also tolerate extreme heat – outdoor ambient up to ~115–125 °F in cooling mode, which covers even hot rooftop deployments in summer. The indoor units deliver strong, directional airflow (Daikin’s patented swing compressor and fan designs achieve high CFM per BTU). Additionally, Daikin’s inverter and expansion valve control are very adept at holding target temperatures. Even as server loads fluctuate, the compressor modulates to match the sensible cooling demand, avoiding big overshoots or swings. Dehumidification is available via “Dry Cooling” mode; however, in a data center context latent loads are usually low. One advantage with Daikin is the variety of indoor unit styles – wall mounts, ceiling cassettes, floor console, and even ceiling-ducted units that can be hidden and ducted directly into server rack aisles if needed. This allows creative cooling setups like ductless cooling on one side of a room and ducted spot cooling on another, all with the same outdoor unit (in multi-zone configurations). Overall, Daikin’s cooling performance is at the top of the class, with a slight emphasis on efficiency (as we’ll see) which doesn’t detract from their ability to maintain critical temperatures.

Redundancy & Reliability: Daikin units are built with the company’s legendary quality – compressors are manufactured in-house and undergo rigorous testing. In terms of redundancy, Daikin doesn’t have a native “server room mode” like Fujitsu; however, multi-zone VRV systems can provide a form of redundancy by serving multiple areas (so one unit failure doesn’t take out all cooling in a facility, assuming overlapping coverage or multiple systems). For a single server room, redundancy would typically be achieved by installing two separate Daikin systems and using an external lead-lag controller or relying on the facility’s BMS to orchestrate them. Daikin’s strength here is that it plays nicely with BMS (as covered below), so setting up an automated backup sequence is feasible. Many telecom sites have used dual Daikin split systems with a simple controller that alternates and alarms upon failure. Hardware reliability is high: Daikin’s outdoor units feature auto oil return and crankcase heaters in heat pumps, ensuring the compressor stays healthy during low-load periods. They also use guards and coatings (e.g. anti-corrosion treatment on condenser coils) for longevity. Continuous operation is something Daikin designs for – in fact, Daikin VRV systems run in massive installations 24/7, so that DNA is in their mini-splits too. We give a slightly lower score on redundancy simply because Daikin doesn’t bundle a built-in alternation logic specific to server cooling, meaning a bit more configuration is needed for a fully redundant setup. That said, many data center managers will already integrate multiple units via their BMS, and Daikin is arguably the best brand to integrate (more on that next). On the reliability front, Daikin offers warranties around 10 years for parts/compressor (residential/light commercial) when installed by authorized contractors, and standard commercial warranty around 1 year parts/5-7 years compressor depending on model. These units are trusted worldwide in mission-critical roles (Daikin is a top supplier for telecom shelter HVAC, for example). It’s safe to say a properly maintained Daikin mini-split will last 10-15 years. With proper redundancy design, you can expect continuous uptime. The one minor con is that if you use a multi-zone outdoor unit for multiple server room air handlers, that outdoor unit is a single point of failure (so for true redundancy, multiple separate systems are preferable).

Energy Efficiency: Daikin leads the pack in efficiency. They have pushed inverter and heat pump technology further than most, often achieving the highest SEER and EER ratings in class. For example, the Daikin 20-Series and new Oterra series single-zone minis offer SEER2 ratings of 21+ (equivalent to ~25 SEER) and excellent EER. Even their larger units are efficient – Daikin’s 3–5 ton VRV IV S-series has SEER2 up to 23daikincomfort.com, which is remarkable for such capacity. Many Daikin models carry the ENERGY STAR label, and some are recognized in ENERGY STAR’s “Most Efficient” rankings annually. What this means for data centers is lower cooling PUE – the HVAC overhead is minimized. Daikin uses variable refrigerant temperature (VRT) control in some systems (like VRV) which can adjust coil target temperatures to improve efficiency dynamically. In simpler terms, if the server room only needs a little cooling, the system will raise the evaporating temperature to cool more efficiently (and dehumidify less, which is fine for IT spaces). This kind of intelligent control is part of Daikin’s DNA. Additionally, Daikin was among the first to adopt R-32 refrigerant in ductless systems globally – R-32 has about 1/3 the GWP of R-410A and also can improve efficiency by a few percentage points. In the U.S., some Daikin SkyAir models are now available with R-32, and we see that in their high SEER2 scores. (Note: R-32 is A2L, mildly flammable, but Daikin has thoroughly tested safety controls for it.) For those concerned with sustainability, Daikin’s lower-GWP refrigerants and high efficiency align well with green building goals. On the EER (full-load efficiency) side, Daikin units are strong: often around 12–15 EER for small units and 10–12 EER even for larger 3–4 ton units (new SEER2/EER2 testing lowers these numbers slightly, but Daikin still ranks near top). This means if your data center is running the AC full-tilt on a hot day, it’s still performing efficiently. The high score in this category reflects that Daikin delivers the best of both worlds – efficiency and performance. With an efficiently cooled data center, you not only save on power bills but also reduce the strain on backup power systems (generators, UPS) during an outage when cooling needs to run. Daikin helps trim those loads with its efficient designs.

Integration & Monitoring: If integration is a priority, Daikin is arguably the number one choice. They have a comprehensive suite of controls and interfaces for their systems. For mini-splits and SkyAir units, Daikin offers the BACnet Interface device which can tie up to 64 indoor units (across multiple outdoor systems) into a BACnet/IP or BACnet MS/TP networkdaikincomfort.com. This interface is BTL-certified and allows a BMS to monitor and control all settings on the units – temperatures, modes, fan speeds, on/off, and to receive alarmsdaikincomfort.com. In essence, every Daikin indoor unit can become a node on the building automation system, just like a CRAC unit would. They also have interfaces for LonWorks and Modbus if those protocols are in usedaikincomfort.com. Furthermore, Daikin’s premium Intelligent Touch Manager (iTM) is a centralized controller that can handle scheduling, email alerts, trending, and even has a BACnet/IP server optiondaikincomfort.com daikincomfort.com – meaning the iTM can expose the Daikin network to a BMS. Even at the individual unit level, Daikin units come with DIII-Net communication, which is their proprietary network linking indoor and outdoor units and controllers. This robust network allows things like grouping multiple indoor units, central on/off control, etc. For a server room, you might use a simplified remote controller mounted on the wall (Daikin’s BRC series controllers) to set temperature and have local monitoring. But you can simultaneously use the BACnet interface so that your facility management software knows the status of the AC. This is extremely useful – you can get proactive alerts if, say, a compressor fails or if room temp is rising. Daikin also supports remote monitoring via cloud – their Daikin Cloud Service or newer Daikin On Site platform can connect through a network gateway to let you see system performance and alarms remotely (this is more commonly used for larger VRV systems, but applicable to smaller ones with the right hardware). Integration extends to third-party fire/security systems too: most Daikin indoor units have terminals for an external on/off or fault output, so you could wire the mini-split to shut off upon a fire alarm, for example, or signal a dry contact if it goes into fault. Few other mini-splits offer as many integration pathways. In summary, Daikin truly understands commercial integration – they make it easy to incorporate ductless units into the larger data center management ecosystemdaikincomfort.com daikincomfort.com. We give a full 10/10 here.

Certifications & Safety: Daikin meets all the standard certifications: UL/cUL listings for safety, AHRI certified performance, and ENERGY STAR on many models. They also adhere to ASHRAE 90.1 efficiency standards for commercial buildings. From a data center standpoint, Daikin systems can be configured to meet ASHRAE TC 9.9 thermal guidelines – their precise controls and monitoring mean you can keep inlet air within the recommended range reliably. One specific safety feature: Daikin outdoor units (like SkyAir) often have integrated hail guards and fan guards which protect the coil and fan from debris – nice if the unit is rooftop in storm-prone areas. The refrigerant consideration: with R-32 models, data center managers should be aware of code requirements for machinery rooms if refrigerant quantity is large; however, mini-split charges are typically low enough to not trigger significant additional requirements (and R-32 has been deemed usable in many commercial settings now). R-410A models remain non-flammable. All Daikin equipment comes with thorough documentation on installation to ensure safe operation (proper ventilation around outdoor unit, etc.). Another certification angle: Seismic and OSHPD certifications – for critical facilities in seismic zones (e.g. California data centers), note that some Daikin units (especially VRV systems) have shake-table testing done or mounting kits for seismic compliance. This can be important for hospital data centers or telecom hubs that require seismic-rated equipment. While a mini-split is light and wall-mounted typically, it’s good to anchor it properly. Daikin units can also integrate with emergency power-off circuits if needed, through their controls, which might be a safety procedure in some data centers. Noise levels on Daikin units are quite low as well – often mid-20s dB(A) indoor at low fan, up to mid-40s at high fan, and outdoor units around 55–60 dB. They also have night quiet modes to reduce noise if the data center is in a mixed-use building. All standard safety protections (high pressure cutouts, etc.) are present and finely tuned. We give a 9/10 here, as Daikin more than satisfies the requirements; the only slight ding could be the A2L refrigerant consideration, but that’s mitigated by smaller charge sizes and proper installation.

Value for Data Center Use: Daikin offers tremendous capabilities, but at a moderate-to-high cost. Typically, Daikin’s equipment is priced similar to Mitsubishi (premium tier). The extra you pay goes into the advanced technology and support. If you fully utilize the integration features, the value is absolutely there – you’re effectively getting CRAC-level controllability at mini-split sizes. The cost-performance ratio is very favorable in terms of efficiency: you’ll save money every month on power due to the high COP/SEER. Also, Daikin’s reliability can save on repair costs and prevent costly downtime. However, in smaller installations where you might not need the fancy integration, you could find that you’re paying for features you don’t use. In larger installations, Daikin shines because you can network many units together and possibly manage them more easily than a mix of disparate systems. Maintenance-wise, Daikin units are straightforward to service for any trained technician, and their self-diagnostics speed up troubleshooting. Parts are readily available, though you generally should go through Daikin’s dealer network. One thing to note is that Daikin has an extensive authorized dealer and service network (especially since Daikin owns Goodman/Amana in the U.S. and has been expanding), so getting support is relatively easy. In terms of uptime ROI, using Daikin’s integrated approach can allow faster response to any cooling issue (since alarms go right to BMS), potentially saving equipment if something starts to go awry – that’s an intangible but important value. We rated value slightly lower than the top score mainly because the upfront investment is higher and redundancy isn’t built-in; you might buy two units and a BACnet interface where another brand’s two units could alternate with built-in logic. But in exchange, you get a lot of sophistication and efficiency. Daikin also tends to have good resale or reuse value – for example, if a facility upgrades, the Daikin units are often repurposed or sold due to their reputation. Summing up, Daikin is a high-value choice for those who plan to leverage its strengths (efficiency, integration, scalability). If your priority is a rock-bottom price, Daikin might not be your pick; but if you consider total cost of ownership and operational benefits, Daikin often comes out on top.

Pros:

Top-of-Class Efficiency: SEER2 up to ~23 (25+ SEER) and excellent EERdaikincomfort.com. Inverter tech and optional R-32 refrigerant deliver huge energy savings while maintaining cooling output. Great for lowering PUE and qualifying for ENERGY STAR and rebates.
Seamless BMS Integration: Exceptional controls – native BACnet/LonWorks/Modbus interfaces let you monitor/control units via BMSdaikincomfort.com daikincomfort.com. Supports centralized control of dozens of units, remote web monitoring, and advanced scheduling/alarming. Ideal for smart data centers.
Broad Product Range: Flexible configurations from single-zone to multi-zone (3–5 rooms on one condenser). Indoor unit options include wall, cassette, and ducted models for targeted rack cooling. Also available in 208–230V single-phase and 460V 3-phase models to match facility power.
Highly Reliable Hardware: Daikin’s build quality and testing are renowned – expect long service life. Comprehensive protections (auto-restart, fault diagnostics) and robust compressors ensure 24/7 operation. Many units can run at extreme ambient temps (–4 °F to 115+ °F) with appropriate kits, covering all climates.
Strong Support & Warranty: Backed by Daikin’s large support network. Typical warranty 10 years on compressor/parts (with registration) gives confidence. Plenty of factory-trained contractors available for service.

Cons:

Premium Price Point: Generally one of the more expensive options initially. The upfront cost of units and official interface devices (e.g. BACnet gateway) can be higher than competitors. This may strain budgets for very small businesses, though the efficiency pays off long-term.
No Native Dual-Unit Redundancy Logic: Unlike some, Daikin doesn’t provide a built-in lead/lag controller specifically for mini-splits. Achieving redundancy requires external control strategies (through BMS or third-party controllers) or using multi-split configurations carefully. It’s a capable platform, but not “set-and-forget” redundancy out-of-box.
Complexity of Options: The vast array of control and configuration options can be overwhelming. Proper setup of BACnet interfaces, addressing, and central controllers might require a controls specialist. Simpler needs might find this overkill.
Maintenance of Multi-Zone Systems: If using a multi-zone VRV-S to cool multiple areas, note that a refrigerant issue or compressor failure on that one outdoor could affect all indoor units on the circuit. Segmenting into multiple single-zone systems can be safer for critical loads but at some cost to efficiency/price. This is just a consideration in design – not a flaw, but something to plan for in critical environments.

Ideal Applications: Enterprise data centers and communications facilities that demand integration and efficiency. Daikin is ideal for scenarios where the cooling system needs to tie into a larger building management scheme – e.g., a Tier III data center in an office building, where facility engineers want full visibility and control of every CRAC and split unit. It’s also a great fit for large network rooms or telecom huts that might have multiple cooling units across sites – Daikin’s remote monitoring means a centralized team can oversee many locations. Use Daikin when you have a mixed cooling requirement: for instance, a main server room plus adjacent support rooms (battery UPS room, tape archive room) – a Daikin multi-zone system can handle each with individual setpoints from one outdoor unit, simplifying installation. Additionally, energy-conscious operations (like universities or tech firms aiming for green IT) will appreciate Daikin’s efficiency and low-GWP refrigerant options. In short, Daikin mini-split systems are best for those who want cutting-edge HVAC technology, deep control integration, and proven performance – even if it means a bit more investment upfront.

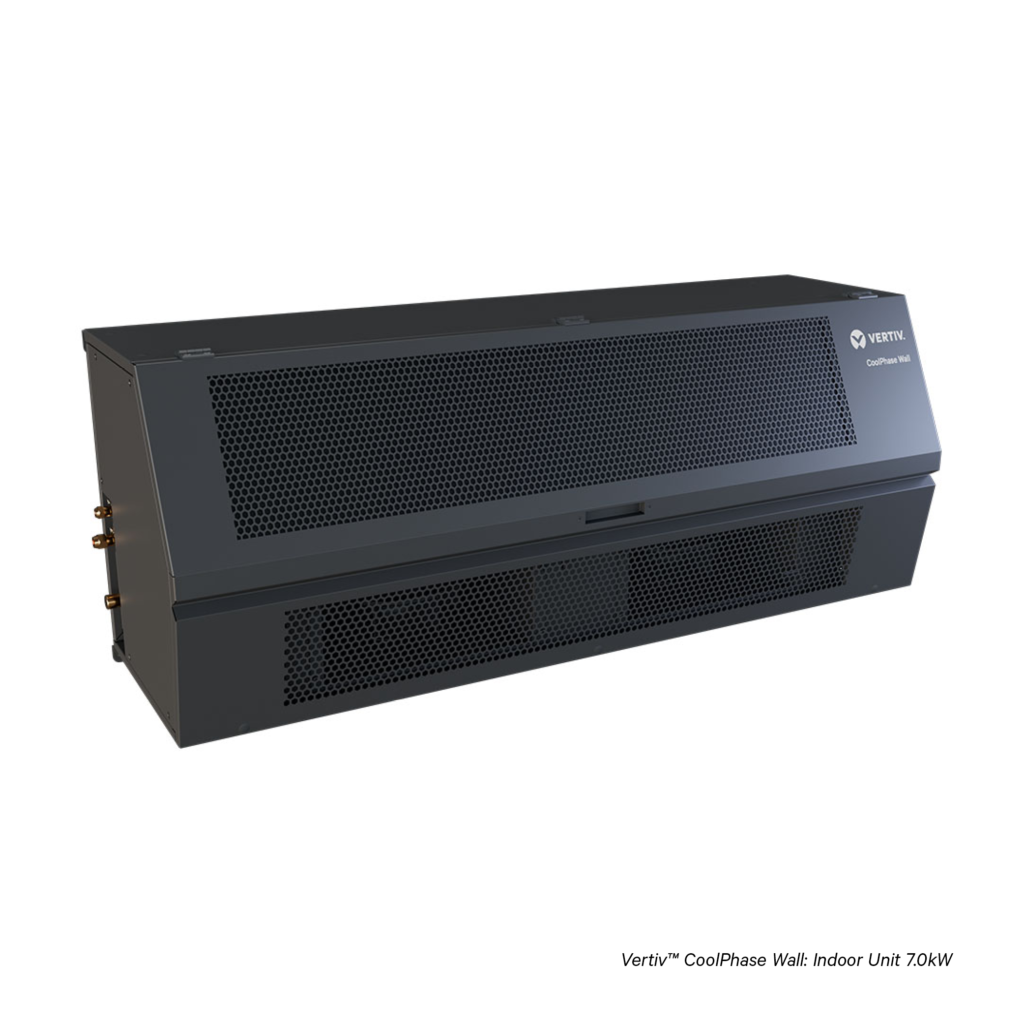

🏅 Vertiv Liebert CoolPhase Wall – Precision Split Cooling for Edge IT

Score Breakdown (out of 10):

Cooling Performance: 10/10
Redundancy & Reliability: 9/10
Energy Efficiency: 8/10
Integration & Monitoring: 10/10
Certifications & Safety: 10/10
Value for Data Center Use: 7/10
Total Score: 54/60

When it comes to purpose-built solutions, Vertiv (Liebert) is a name every data center manager knows. The Vertiv™ Liebert CoolPhase Wall system is a wall-mounted split air conditioner specifically designed for small IT rooms, server closets, and edge computing sitesvertiv.com. Essentially, it’s a hybrid of mini-split convenience with Liebert’s precision cooling heritage. The CoolPhase Wall makes our list for delivering extremely high sensible cooling, intelligent controls, and mission-critical reliability in a compact, zero-floor-space package. If you have a high-density server closet or micro data center that demands precision environmental control, this unit is a top contender.

Cooling Specs & Performance: The CoolPhase Wall series comes in capacities roughly from 3.5 kW up to 11 kW (approx. 12,000 – 37,000 BTU/h) nominalvertiv.com vertiv.com. Don’t let the moderate BTUs fool you – these are precision cooling units that focus almost entirely on sensible heat removal (SHR typically 0.9 or higher). They are engineered to handle “heavy equipment loads” with very little capacity wasted on latent coolingvertiv.com vertiv.com. In practical terms, that means they can pull heat off your servers efficiently without over-dehumidifying the room (which is important for preventing static issues). The indoor unit is a wall-mounted evaporator that blows cold air directly into the room; it’s slim but slightly deeper than a typical mini-split fan-coil because it houses higher-capacity fans and coil. It provides higher air flow rates than standard comfort minis – Vertiv cites significantly greater CFM, which helps eliminate hot spots by moving more air across the server intakesvertiv.com. The system supports either up-flow or down-flow configurations with duct kits if needed (i.e., you can have top supply/return or bottom supply, etc., to adapt to room layout). It is essentially like a mini-CRAC unit: the precision thermostat maintains temperature within a tight band, and the unit can run 24/7 at full load if necessary. The CoolPhase Wall also boasts a wide operating range. According to Vertiv’s data, it can reject heat in ambient temperatures from –31 °F up to 118 °Fvertiv.com – an extremely broad envelope. That means even if your outdoor condenser is baking in the sun or in a cold winter night, the unit can keep working (with built-in condenser flood control and variable fans to adapt). It’s truly designed for “extreme conditions” and constant dutyvertiv.com vertiv.com. Additionally, the system comes with a plenum-rated condensing unit option, so you can even install the condenser indoors (venting exhaust into a ceiling plenum) if an outdoor placement isn’t feasiblevertiv.com. Cooling performance is rock solid: these units precisely hold the setpoint and have fast response to load changes (thanks to variable speed compressors and EC fans). In short, the CoolPhase Wall delivers the kind of performance one expects from a Liebert – dedicated, always-on cooling for IT loads, but in a split-system format that’s easy to deploy in small spacesvertiv.com.

Redundancy & Reliability: Vertiv has built-in some clever redundancy features into the CoolPhase Wall. Notably, multiple CoolPhase units can be networked in a team configuration with “active standby lead/lag control”vertiv.com. This means if you install two units in the same room, they can communicate to alternate as lead unit or to automatically share the load, and if one goes down the other ramps up to handle everything. This is very similar to how larger Liebert CRAC units do teamwork control for N+1 redundancy. Having this coordination out-of-box is a huge plus – it’s essentially the precision cooling equivalent of Fujitsu’s server mode, but tailored by Vertiv for critical facilities. The reliability of the system itself is high: it uses industrial-grade EC fans (electronically commutated) known for long life and low energy, and high-quality compressors (likely scroll or rotary inverter compressors, with soft-start and protection routines). All critical components are monitored by the on-board microcontroller – so if a fan is not achieving expected RPM or a filter is clogged causing high discharge pressure, it will generate an alarm or take action. The system comes with factory-test and Vertiv quality control, meaning each unit is typically run-tested before shipment. Vertiv mentions this unit is designed to “reduce the risk of overheating and equipment failure” in IT roomsvertiv.com – essentially its raison d’être is protecting your uptime. The one consideration is that, like any specialized product, repairs might require Vertiv-authorized service techs and genuine parts which can be pricier. The standard warranty is 18 months from shipment (or 12 months from startup)vertiv.com, which is shorter than typical mini-splits but common for precision equipment (often extended warranties or service contracts are available for purchase). We scored reliability 9/10, as the hardware and features are top-notch, but cost of service and requiring specific service partners (Vertiv Liebert agents) can be factors to consider. Nonetheless, if redundancy is configured (two units in teamwork), it’s a very robust setup. Liebert gear is known to run for decades in data centers – we’d expect no less here with proper maintenance.

Energy Efficiency: The CoolPhase Wall employs modern efficient components – variable speed drive, EC fans, and it uses the newer R-32 refrigerant (low-GWP) which also offers efficiency gainsvertiv.com. However, because this is designed for maximum cooling performance and reliability, its efficiency, while good, is not as sky-high as some comfort-oriented mini-splits. Essentially, it prioritizes sensible capacity and airflow over hitting a crazy SEER number. That said, Vertiv explicitly markets it as improving energy efficiency and reducing operating costs, citing the variable compressors and fans as keyvertiv.com vertiv.com. In terms of comparative numbers, it likely has a respectable EER (perhaps in the 10–12 range), but not the 20+ SEER that smaller comfort minis achieve. The focus is also on high SHR – which actually saves energy in a data center because you’re not overcooling or reheating to manage humidityvertiv.com. So in the context of data centers, it’s very efficient where it counts. Additionally, the unit’s ability to scale capacity prevents short-cycling and excessive power draw during low IT load periods. And since it uses EC fans, part-load fan power is drastically lower (EC fans can throttle down with much better efficiency than legacy AC fans). Vertiv also built these to be row-based cooling capable – i.e., if you had a small row of racks, the high airflow and focused cooling mean you can potentially raise room setpoint a bit and still cool the racks, which saves energy too. Finally, R-32 refrigerant itself contributes to a slightly better Coefficient of Performance (all else equal) and Vertiv highlighting low GWP aligns with greener operationsvertiv.com. We give efficiency 8/10 – not because it’s bad (it’s actually great for what it is), but it can’t match the seasonal efficiency numbers of some purely comfort-oriented mini-splits. In day-to-day data center use, however, it will likely operate very cost-effectively. And importantly, every unit is fully utilized – meaning you’re not paying for any extraneous capacity or function; it’s all directed at cooling IT load. Also consider that by preventing hot spots, it can allow you to run your server fans lower or avoid overcooling an area, which is an indirect energy efficiency gain for the whole system.

Integration & Monitoring: As expected from Vertiv/Liebert, the CoolPhase Wall comes with advanced monitoring and control features built-in. The unit has an onboard microprocessor controller with network capability. You can connect via Vertiv’s software or integrate it into your facility monitoring. Vertiv’s spec sheet notes “remote monitoring capabilities and built-in intelligent controls” to enhance reliabilityvertiv.com. In practice, this means the unit likely has SNMP/Web monitoring out-of-the-box or via an add-on card, and can tie into Vertiv’s existing monitoring platforms (like LIFE Services or their Nform monitoring software). It probably supports dry contacts for major alarms (common alarm, etc.) and may offer Modbus or BACnet IP communication natively (Vertiv has started offering some smaller units with native BACnet/Modbus for BMS integration). The user interface is typically a wall-mounted display or accessible through a web interface, giving you readings of temperatures, statuses, and alarm history. Because this is designed for critical spaces, it will send alarms for things like high temperature, loss of airflow, compressor fault, high humidity, etc. Teamwork mode also implies communication between units – so they likely wire together or network, and that means you can monitor the group status as well. For example, if Unit A is lead and fails and Unit B takes over, you’ll get an alarm that A is down and B is running in backup mode. This is the kind of intelligence usually not found in basic mini-splits. Additionally, integration to building systems is expected: Vertiv explicitly states it can be scaled and its performance viewed remotelyvertiv.com vertiv.com. It being a Liebert product, we can be confident that if a site has a Liebert SiteScan or Trellis DCIM or any SNMP-based system, the CoolPhase can speak to it. The controller might also expose Modbus RTU/TCP for industrial BMS use. Essentially, it’s designed to drop into an existing monitored environment with minimal fuss. The documentation also mentions “enhance thermal conditions… by leveraging remote monitoring… and intelligent controls”, which indicates it can adjust itself or send alerts to prevent issuesvertiv.com. Integration is definitely a 10/10 here – few mini-splits have this level of built-in monitoring. It’s truly made for critical facility folks who want detailed oversight.

Certifications & Safety: The CoolPhase Wall is fully geared for compliance in data center environments. It is UL listed (Vertiv products typically carry UL/CSA listings for both the indoor and outdoor units). It uses R-32 refrigerant, which, while A2L, is low charge and Vertiv would ensure all UL 60335-2-40 A2L safety requirements are met (e.g., proper ventilation, leak detection if needed by charge, etc.). The unit’s electrical safety and surge protection are likely robust – Liebert gear often has higher withstand for power quality issues, knowing it will be on critical power feeds. It is also likely NFPA 70 (NEC) compliant for installation in various scenarios (including in plenum if needed, given the plenum-rated mentionvertiv.com). Importantly, it meets ASHRAE TC 9.9 guidelines for data center cooling in terms of maintaining consistent temperatures and airflow distributionvertiv.com vertiv.com. Vertiv specifically highlights how it “supports stable temperature control for mission-critical environments”vertiv.com – meaning it prevents swings that could take you out of recommended ranges. The unit’s high SHR also means it won’t over-cool and dry out the air too much; thus maintaining humidity in the recommended 40-60% range is easier (often, additional humidity control isn’t needed for small rooms if the AC isn’t stripping too much moisture). If humidity is a concern, though, note that this unit is cooling-only (no humidification or reheat built in), so in very dry climates you might need a separate humidifier if required. However, that’s typical for any mini-split solution. Vertiv likely has optional filters: being a precision unit, it might accommodate higher efficiency air filters than the standard mesh on comfort minis – possibly 1” or 2” MERV filters can be installed on the intake. That’s a safety/health plus (keeping dust off servers). With respect to physical safety, the wall-mount indoor unit frees up floor space and reduces trip hazards or airflow blockages on the floor. The outdoor unit (condensing unit) is standard in appearance but possibly heavier-duty. It may have dual circuits or just one circuit – for this capacity likely one circuit with inverter. If the user wants redundancy, they’d go with two full systems rather than dual circuit, which is fine. Another safety aspect: since it’s wall-mounted, one must secure it properly (likely comes with a mounting bracket) – definitely follow the seismic anchoring guidelines if in seismic zones, as with any wall unit. All things considered, the CoolPhase Wall is built to data center-grade safety and standards, including meeting any relevant network equipment building standards (NEBS) if applied to telecom. We give it 10/10 because it’s hard to fault anything in this arena – it’s purpose-made for compliance and safety in IT environments.

Value for Data Center Use: Here’s where the equation tilts: Vertiv’s CoolPhase Wall is an elite solution with a premium price tag. In terms of cost-per-BTU, it will be more expensive than a generic mini-split – you’re paying for Liebert engineering, specialized controls, and likely a smaller production scale. For small businesses, this might be out of reach compared to a Mitsubishi or Gree unit that “does the job”. However, for those who truly need its features, the value is there. It can save you from having to re-engineer a space or from downtime that a lesser unit might not avert. The ROI in uptime protection is high – basically this unit is insurance against thermal failures. Also, consider that with integrated monitoring and redundancy, you might save on external controllers or sensors that you’d otherwise have to buy for a generic mini-split solution. Vertiv’s maintenance contracts can also add cost, but they add value in ensuring the unit is always optimal (preventative maintenance, etc.). We gave value 7/10 acknowledging that for a given budget, you might cover more square footage or more redundancy with simpler mini-splits, whereas the Vertiv is a targeted precision approach. In edge computing scenarios (like a shipping-container data center or remote telco hut), deploying a solution like this might avoid having to oversize or over-provision cooling – so it could save money at a system level. Additionally, since it’s wall-mounted and zero floor footprint, if you have an expensive white space where every square foot counts, not taking up floor space can be a hidden value (especially in an edge rack enclosure where a floor AC might not even fit). Lifecycle cost: these units, if maintained, will last a long time and maintain high performance; if something fails, Vertiv parts and service are generally more expensive than residential HVAC parts, but they are available 24/7 in many areas (that’s part of what you pay for – rapid support). Considering all this, the CoolPhase Wall is a strategic investment for critical edge sites and high-value equipment rooms. It’s not the cheapest cooling per BTU, but it is among the most effective and intelligent per BTU. For many, that trade-off is worthwhile, especially in unmanned or lights-out facilities that need self-regulating infrastructure.

Pros:

Precision Cooling Design: Purpose-built for IT loads – delivers up to 11 kW of high sensible cooling with no ductworkvertiv.com vertiv.com. Maintains very stable temperatures and eliminates hot spots with high airflowvertiv.com. Essentially a mini-CRAC unit on your wall.
Extreme Environment Capability: Wide operating range from –31 °F to 118 °F outdoor ambientvertiv.com. Equipped with variable speed compressors and EC fans to ensure cooling even in extreme cold or heat. Ideal for harsh sites or outdoor enclosures.
Integrated Redundancy Control: Multiple units can work in team (lead/lag) with active standby and automatic failoververtiv.com. No additional controllers needed to achieve N+1 – units communicate to back each other up, maximizing uptime.
Enterprise-Grade Monitoring: Built-in Liebert intelligent controls with remote monitoring, SNMP/BMS integration, alarm notifications, etc.vertiv.com. Deep visibility into system status and performance via Vertiv software or BMS – comparable to large-scale data center cooling systems.
Low GWP & High Quality: Uses R-32 refrigerant for lower environmental impact (and efficient heat transfer)vertiv.com. Constructed by Vertiv to data center standards – rugged components, plenum-rated options, UL listed, and field-proven reliability (backed by Vertiv’s service network).

Cons:

Higher Initial Cost: Significantly more expensive than typical commercial mini-splits of similar capacity. You are paying a premium for the Vertiv/Liebert brand and the precision features. Budget accordingly, especially if considering multiple units for redundancy.
Limited Capacity Range: Currently tops out around 11 kW (3.1 tons) per unitvertiv.com. For larger rooms, you’ll need multiple units. Not as scalable in capacity as some multi-split solutions (though multiple units do coordinate).
Specialized Service: Maintenance and repairs may require Vertiv-authorized technicians. While extremely reliable, if a problem arises, the service calls and parts can be pricier than generic units. The warranty is only 18 months standardvertiv.com, so extended coverage should be considered.
Efficiency Trade-off: Optimized for sensible cooling and uptime, not for highest SEER. Energy efficiency is good but not “mind-blowing” – a standard mini-split might have a higher SEER rating in mild conditions. In pure ROI, energy savings alone might not justify the cost; the value is in protection and control.
Installation Considerations: It’s a heavier-duty unit – installation may require wall reinforcement and proper placement to ensure optimal airflow (it’s blowing a lot of CFM). Condensate removal, power supply, and interconnecting control wiring are more complex than a typical mini-split. Essentially, you should follow Vertiv’s installation guidelines closely or use their installers.

Ideal Applications: Edge data centers, remote server rooms, and telecom/ISP huts where downtime is not an option and space is at a premium. The Vertiv CoolPhase Wall excels in unattended or lights-out sites that need self-sufficient cooling with smart alarms – for example, an on-site IT room at a branch office or a mobile data center module. It’s also great for high-density micro data centers or network closets that generate a lot of heat in a small footprint – the high sensible capacity and airflow tackle those conditions effectively. If you have an environment that’s too harsh or critical for a standard comfort mini-split (say a factory network room that gets very cold in winter or a rooftop telecom shelter), the CoolPhase is engineered for that scenario. Additionally, any organization already using Vertiv/Liebert cooling in large data centers may choose CoolPhase for smaller rooms to maintain consistency in monitoring and support. Think banks, healthcare, military, and telecom sectors – they often favor this type of solution despite cost, because it aligns with their reliability standards. In summary, Vertiv’s system is best when you need mini-split installation flexibility with full-scale data center cooling reliability – a niche but increasingly common requirement as computing moves closer to the edge.

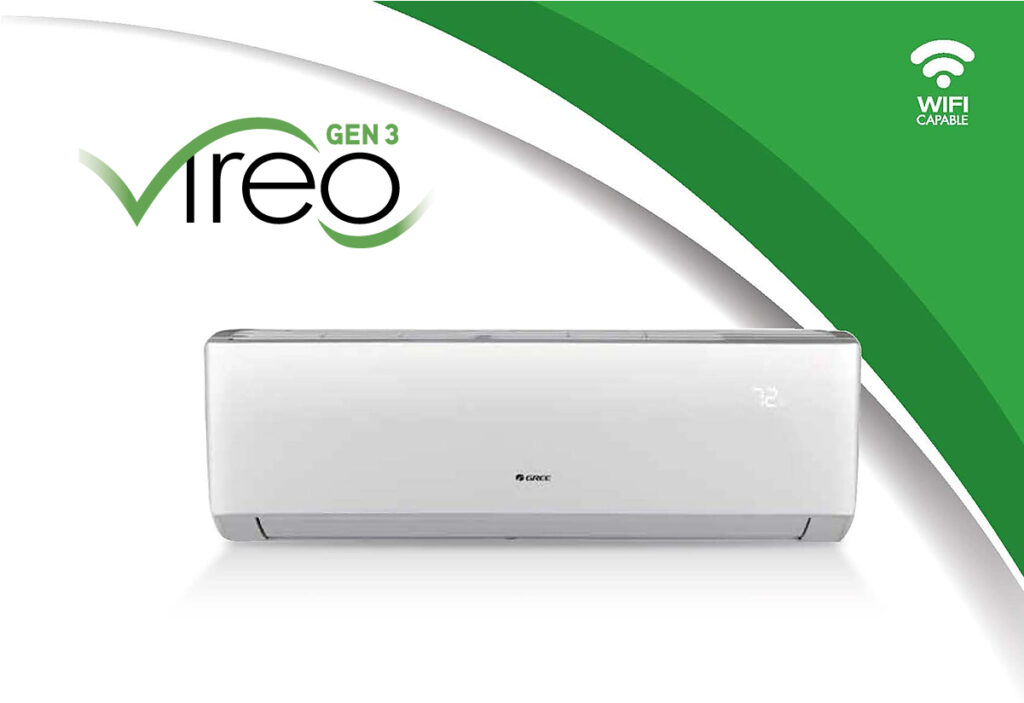

🏅 GREE Vireo Gen3 – Cost-Effective Micro Data Center Cooling with Subzero Grit

Score Breakdown (out of 10):

Cooling Performance: 8/10
Redundancy & Reliability: 7/10
Energy Efficiency: 9/10
Integration & Monitoring: 7/10
Certifications & Safety: 9/10
Value for Data Center Use: 10/10
Total Score: 50/60

Rounding out our list is GREE’s Vireo GEN3 ductless system – an affordable yet surprisingly capable mini-split that has caught the attention of IT managers on a budget. GREE is the world’s largest HVAC manufacturer (often the OEM behind other brands), and their Vireo Gen3 series offers robust cooling with “sub-zero” outdoor operation and modern features like Wi-Fi control. While primarily marketed for residential and light commercial use, GREE specifically notes the Gen3’s applicability for server rooms and sensitive equipment cooling, emphasizing its cost-effective performance in these environmentsgreecomfort.com. This system is ideal for smaller server rooms, network closets, or edge deployments where simplicity and value are paramount.

Cooling Specs & Performance: The GREE Vireo Gen3 comes in single-zone capacities of 9,000 BTU, 12,000 BTU, 18,000 BTU, and 24,000 BTU (0.75 to 2 tons), and 36,000 BTU in some catalogs. It’s a heat pump system, but importantly for server rooms, it’s designed with an ultra-wide operating range: cooling mode is rated for outdoor ambient from -20 °F up to 122 °Fscribd.com scribd.com. This is exceptional for a value-focused unit – it means even if it’s well below freezing outside, the GREE can continue cooling your equipment (with built-in low ambient controls and a crankcase heater). GREE explicitly markets this as “subzero cooling capability… ensuring your equipment remains in a safe environment”greecomfort.com greecomfort.com. In practical terms, that puts it on par with the much pricier units in terms of winter operation. The cooling performance itself is solid: these units use GREE’s G10 inverter compressor which can modulate output to closely match cooling demand. They might not hold the temperature as tight as a true precision unit, but they will keep a small server room easily within safe limits (typically you’d maintain perhaps 70–75 °F with a GREE and it will cycle within a few degrees of that). The airflow on the indoor wall unit is auto-swing and multi-speed, capable of circulating air across a mid-sized room fairly well. If the room has hot spots, you might need a small circulation fan, but overall the unit can push a decent CFM (for example, the 24k unit moves about 600 CFM at high fan, which is plenty for ~500 sq. ft). Dehumidification mode is included – the system can remove humidity at a lower fan speed which could be handy if your server room is in a humid climate and sometimes unoccupied (though generally IT loads keep RH low). One thing to note: GREE units come with “Turbo” mode which ramps to full capacity quickly – useful if a temperature spike occurs (like after a power outage, when cooling is restored, you want to quickly pull the room back down – Turbo would do that). Also, the Vireo Gen3 has a wide evaporator coil design that helps it maintain cooling output even at higher return air temperatures (meaning if your server exhaust is hot, it can handle it without tripping). Overall, for the price, the cooling performance is impressive and certainly meets the needs of most small server rooms. It might lack some over-cooling capacity headroom that expensive units have, so you’d size it closer to your actual BTU load (with a safety margin). But thanks to inverter tech, oversizing slightly isn’t an efficiency killer like it is with fixed-speed units.

Redundancy & Reliability: As a single-split system, the GREE Vireo doesn’t have built-in redundancy features. Achieving redundancy would require installing two units with an external controller or simply setting one at a slightly higher setpoint as backup. That said, many choose GREE specifically to install two units for less than the price of one premium unit – a common approach is to have twin GREE systems each capable of the full load (or close) and alternate or back each other up. However, coordination isn’t automatic (no native lead-lag logic), so you’d rely on either manual season-based alternation or use smart thermostats that can stage them. In terms of reliability, GREE has made strides in quality over the years. The Vireo Gen3 is quite reliable for 24/7 operation according to field reports; it features protective functions like automatic defrost, compressor overload protection, and voltage fluctuation safeguards. It’s also self-diagnosing – error codes will display for issues, aiding in troubleshooting. One limitation: the warranty is a standard 5 years parts, 7 years compressorscribd.com (for commercial use it might be 5/5 in some cases), which is decent but not as long as some Japanese brands’ extended warranties. Still, 5/7 is industry-standard and shows GREE stands by the product to that extent. The reliability score is a bit lower mainly due to the lack of integrated redundancy and the brand’s perception in critical environments. GREE units do not have the decades-long track record in data centers that Liebert or Mitsubishi have. That said, many small businesses successfully use GREE or GREE-manufactured units in server rooms – they generally chug along if maintained. For any critical application, using two units is wise for redundancy, and given the lower cost, GREE makes that feasible. Summed up: expect reliable operation, but plan redundancy externally. Maintenance-wise, GREE units have easily removable filters and straightforward service access, so upkeep is easy (just keep coils clean and check the condensate drain/pump). As a side benefit, GREE’s units sometimes have field-serviceable PC boards that are cheaper to replace, meaning if something goes wrong out of warranty, repairs can still be economical (whereas some brands’ parts are very pricey). Considering all, GREE’s reliability is good, but in a mission-critical context, you mitigate risk by doubling up – which fortunately, is affordable.

Energy Efficiency: The GREE Vireo Gen3 really shines here. These units boast high SEER and EER ratings – for instance, the 9k BTU model is rated at 25.3 SEER / 14.7 EER (SEER2 ~20+, EER2 ~12+)scribd.com scribd.com, and even the larger 24k and 36k BTU models achieve around 20–22 SEER and solid EER numbershomedepot.com acmeref.com. Many configurations are ENERGY STAR® certified, verifying their efficiency. This means whether at partial load or full tilt, the GREE will be relatively easy on the power draw. For a server room running 24/7, those savings accumulate – you might save hundreds per year in electricity compared to an older fixed-speed unit or less efficient modelairconditionerlab.com airconditionerlab.com. The G10 inverter modulates smoothly, and GREE has a function called “I-Feel” on the remote that can adjust cooling based on sensed area temp, which can avoid overcooling. One caveat: if you use the unit solely in cooling mode, you’ll want to ensure any defrost cycles (which normally are for heating) are disabled or minimized – the unit shouldn’t go into defrost while cooling anyway, and in cooling it will run continuously even in very cold weather (with the low ambient feature preventing freeze-up). There is also an Eco mode which you can use to slightly trim energy usage at the cost of a wider temperature band – could be useful overnight if slight temperature drift is acceptable. Another efficiency plus is the included Wi-Fi smart control – integration with apps and voice assistants means one could set up schedules or alerts easily (for example, get a push notification if the room temp is out of range and the AC is struggling – albeit that’s a DIY approach to monitoring). The Gen3’s high efficiency is partly due to advanced compressors and partly due to using R-410A refrigerant optimally – note GREE also makes models with R-32 internationally, but Gen3 in North America is R-410A which is fine and safe. All in all, GREE delivers near-premium efficiency at a mid-range price, which is a strong point in its favor for data centers that want to keep utility costs in check or have limited power (some older sites can’t easily add more HVAC power load – a high SEER unit mitigates that). If running on backup generator, the soft-start inverter and lower running amps of a high SEER unit like GREE’s also mean less generator sizing requirements. We give it 9/10, as it’s among the best in efficiency except for perhaps a slight edge by Daikin in some sizes. Considering its bang-for-buck efficiency, GREE is excellent here.

Integration & Monitoring: This is where GREE is more consumer-oriented. The Vireo Gen3 includes Wi-Fi connectivity standard (the module is built in)scribd.com, which allows control via the GREE smartphone app and even integration with Alexa/Google Assistant. For a tech-savvy facility manager, that means you could check the status or change settings remotely on your phone – a nice perk if you want to verify the server room temperature on a weekend, for example. However, it’s not a professional BMS integration. There’s no out-of-the-box BACnet or SNMP support on a GREE mini-split. Integration would be manual – e.g., using a smart thermostat that can control mini-splits (there are a few aftermarket solutions) or simply relying on the app and perhaps a separate sensor system for alerts. On the plus side, the GREE app can send alerts if, say, the unit fails to maintain setpoint or if it goes offline, though relying on a cloud service may not be as robust as a direct BMS alarm. The unit does have a wired controller option – you can connect an optional wall thermostat (GREE makes a wired controller for Gen3) which could be interfaced with a dry contact to a monitoring system (like using a relay to detect if the unit is in alarm mode). These are workarounds; in short, GREE doesn’t cater to building management integration the way bigger brands do. For many small setups, this is acceptable – you might not have a BMS, so just knowing you can remote in via app is enough. The Vireo Gen3 does have a “Xavier” diagnostic port but that’s for technicians. From a monitoring stance, you might use third-party temperature sensors (like a network-enabled temp sensor in the rack that can email/text if temps rise) in conjunction with the GREE – that covers your bases. Integration score is thus lower, as you’ll be DIY’ing any advanced monitoring. Another consideration: GREE is not as widely known by building engineers, so they might not have ready-made interface kits. However, the simplicity can be a benefit – fewer complicated controls to go wrong. The system will auto-restart after power outage to last settings (so it will resume cooling automatically), which is critical for unattended sites. Also, it has a “Lock” function to prevent tampering, which is good if the thermostat is in an accessible area – you don’t want someone messing with the server room AC settings. Summarily, GREE provides basic integration (Wi-Fi/app, simple dry contact solutions) but not enterprise-level integration.

Certifications & Safety: GREE Vireo Gen3 units are UL Listed and AHRI certified. They meet all U.S. safety standards for HVAC. Since they use R-410A refrigerant, there are no special ventilation requirements (A1 refrigerant). They feature multiple safety protections: compressor overheat protection, high pressure cutoff, low temperature cut-out (for heating mode), etc. The unit will shut down components if something is outside safe range, to protect itself and your facility. The indoor unit has a condensate drain and the larger models include an internal condensate pump to push water out if needed; always important to ensure the drain is set up to avoid leaks (that’s on installation quality, not the unit design). GREE’s units have fire-resistant enclosure materials for the electronics (required by UL), so no worries there. Also, because they are a major manufacturer, all their units use lead-free RoHS compliant circuit boards and environment-safe materials, if that is a concern for green initiatives. On the ASHRAE TC 9.9 front, a GREE can maintain the recommended thermal envelope but it doesn’t specifically advertise compliance; it’s basically as compliant as any standard AC – keep it running and it holds the temp. GREE’s ability to cool at low ambient without needing aftermarket add-ons is a safety factor: some cheaper units shut off below 60 °F outdoors and that obviously wouldn’t work in winter – but GREE’s design avoids that pitfall, meaning the safety of your servers isn’t compromised by seasonal changesgreecomfort.com. Another note: the noise level – GREE indoor units are quiet (26-45 dB range) and outdoor units are around 55 dB. If your server room is next to an office, these won’t be disturbingly loud. From a certification standpoint, GREE as a company invests in ISO 9001 and ISO 14001 manufacturing processes, indicating quality control and environmental management. We score safety high (9/10) because essentially it meets all industry requirements; the only slight gap is maybe that it doesn’t explicitly cater to some niche data center guidelines (like no integrated smoke detection or tie-in to EPO, which high-end CRAC units might have). But one could wire an EPO to cut power to it if needed, like any split system.

Value for Data Center Use: This is where GREE really gets a perfect 10. The cost-performance ratio is outstanding. You get a full feature set – inverter, low-ambient cooling kit included, Wi-Fi control, decent warranty – at a price often 30–50% less than premium brands. For small companies or edge deployments with tight budgets, this can be the difference between having redundancy or not. For example, one could often buy two GREE 2-ton systems for the price of one similarly sized top-brand system. That means for the same cost, you can install one as primary and one as backup, dramatically reducing risk of downtimenetrinc.com netrinc.com. The lifecycle costs are low: parts (even out of warranty) are reasonably priced, and because the unit is efficient, power costs remain low. GREE units are also often eligible for utility rebates because of their high SEER – even though they are inexpensive, they meet criteria that some cheaper units don’t, so you might recoup a few hundred dollars from a power company incentive. When it comes to ROI on protecting uptime, a GREE unit obviously doesn’t have the same bulletproof reputation as a Vertiv, but if you have two units, the chance of both failing at once is extremely low – so you get a strong uptime guarantee through redundancy, at a low price point. Many IT managers take this approach: deploy multiple mid-range units rather than one expensive unit – and GREE is a prime candidate for that strategy. Another aspect is ease of installation: HVAC contractors are generally familiar with GREE (they make private-label units for brands like Crown, etc., plus GREE has U.S. distribution), and often you can get these installed quickly and without special training needed. That availability and simplicity adds value because you won’t struggle to find service or parts in most areas. The only slight drawback is that you might not get the “white glove” level of support that you’d get from a Vertiv or Mitsubishi distributor, but many would argue the cost savings more than make up for that, especially for smaller scale operations. In summary, for data enviroments where budgets matter, GREE Vireo Gen3 offers the most cooling per dollar while still covering the key bases of reliability and efficiency – hence a perfect value score.

Pros:

Budget-Friendly Excellence: Significantly lower cost than big-name competitors without sacrificing core features. Ideal for getting redundant cooling on a limited budget – high ROI in terms of cooling per dollar.
Sub-Zero Cooling Ready: Can cool with outdoor temps down to -20 °F out-of-the-boxscribd.com (no extra kits needed). Proven in server rooms to maintain safe temps regardless of winter conditionsgreecomfort.com greecomfort.com.
High Efficiency Ratings: Up to ~25 SEER and 12–15 EER on smaller modelsscribd.com, and strong efficiency even on larger ones. ENERGY STAR® certified in many sizes – cuts energy usage and operating cost for 24/7 operation.
Modern Convenience: Built-in Wi-Fi with app control and alerts. Easy remote monitoring through smartphone, which adds a layer of oversight for unmanned sites. Also supports wired thermostats and has auto-restart and other smart functions.
Solid Quality & Safety: UL listed, self-diagnostics, and a reliable inverter compressor. 5-year parts/7-year compressor warrantyscribd.com is on par with industry norms. Quiet operation and small physical footprint.

Cons:

No Native Redundancy Logic: Lacks built-in lead/lag or backup mode – using two units for redundancy requires external control or manual setup. The units won’t communicate or alternate on their own.
Limited Integration Options: No direct BMS or SNMP support. Professional monitoring/integration requires creative workarounds (smart thermostats, separate sensors). Geared more toward consumer/light commercial control methods.
Brand Perception: Some enterprise customers may have less familiarity or confidence in the GREE brand for critical systems. (However, GREE’s large market presence and OEM role mean the hardware is quite proven, just not under its own name in many cases.)
Support Network Variability: While parts are generally available, support depends on local HVAC contractors – you might not have a dedicated “GREE service” team as you would with Liebert or others. Ensure your installer is comfortable servicing GREE units or can get distributor support if needed.
Feature Simplicity: Missing some high-end features like advanced user interfaces, precise humidity control, or extensive alarm outputs. Essentially a straightforward cooler – which is part of why it’s affordable, but it means fewer frills.

Ideal Applications: Small server rooms, networking closets, edge computing cabinets, and cryptocurrency mining rooms – anywhere you need reliable cooling at the best possible price. GREE Vireo Gen3 is perfect for startups, small businesses, or branch locations that can’t invest in top-dollar cooling but still require 24/7 environmental control. It’s also a smart choice for backup cooling systems: for instance, if a main CRAC unit is servicing a room, a GREE mini-split can be an economical standby unit that kicks in during maintenance or emergencies. Many MSPs (Managed Service Providers) use units like GREE for their client’s server closets because they hit the sweet spot of affordability, efficiency, and sufficient reliability. Additionally, for modular data centers or containerized labs, GREE units can be installed quickly to add cooling capacity without huge costs – and their low ambient capability is great for containers placed outdoors in varied climatesgreecomfort.com. Education sector server rooms, remote telco huts, or even home labs and enthusiast mining rigs can benefit from Vireo Gen3’s no-nonsense, effective cooling. In essence, choose GREE when you need a workhorse mini-split that covers the basics extremely well, and want to maximize your cooling redundancy or capacity per dollar spent.

Comparison Table of Top Mini‑Split Systems for Data Centers

Below is a side-by-side overview of the five ranked systems, highlighting key specifications and scoring categories for quick reference:

Rank & System	Cooling Capacity	Low-Ambient Cooling	Efficiency (SEER/EER)	Integration	Total Score (60)
🥇 Mitsubishi P-Series	12k–42k BTU (1–3.5 Ton)	Down to –20 °F (with kit)netrinc.com	~20–22 SEER2 / ~12 EER2hvacdirect.com	BACnet/Modbus interface; central controller; lead-lag via BMSdevice.report shop.rfwel.com	56
🥈 Fujitsu Airstage (XLTH)	9k–48k BTU (0.75–4 Ton)	Down to –15 °F (XLTH models)ecomfort.com	~18–21 SEER2 / ~11 EER (varies)	Server Room Mode dual-unit alternationecomfort.com; wired remote; third-party BACnet	53
🥉 Daikin SkyAir/VRV	9k–60k BTU (0.75–5 Ton)	~0 °F std (–4 °F w/ kit)budgetheating.com	Up to 23 SEER2 / ~12+ EERdaikincomfort.com	Native BACnet/LonWorks/Modbusdaikincomfort.com; iTouch Manager; advanced BMS integrationdaikincomfort.com	54
🏅 Vertiv Liebert CoolPhase	12k–37k BTU (3.5–11 kW)	Down to –31 °F (built-in)vertiv.com	– (Precision focus, EC fans)	Intelligent controller; SNMP/BMS readyvertiv.com; teamwork lead/lag modevertiv.com	54
🏅 GREE Vireo Gen3	9k–36k BTU (0.75–3 Ton)	Down to –20 °F (built-in)scribd.com	Up to 25 SEER / 12–15 EERscribd.com	Wi-Fi app & Alexascribd.com; basic dry contacts (no native BACnet)	50

Table Notes: All units above are available in the U.S. through either manufacturer reps or authorized distributors. Voltage: Mitsubishi, Fujitsu, Gree, and most Daikin SkyAir models operate on 208–240 V single-phase. Daikin’s VRV and some larger SkyAir units, as well as Vertiv CoolPhase, can support 208 V 3-phase or 460 V 3-phase inputs (check specific model options). Each system is UL listed and uses R-410A refrigerant except Vertiv (R-32) and some Daikin models (R-32). Total Score is the sum of category scores as detailed in the analysis sections.

🧭 Which Mini‑Split System Is Best for Your Data Environment?

Choosing the right cooling system for your data center or server room comes down to your specific needs and priorities:

For Maximum Reliability (No Compromises): If uptime is mission-critical and budget allows, Mitsubishi P-Series or Vertiv Liebert CoolPhase are top choices. Mitsubishi offers proven 24/7 reliability and widespread support – great for a mid-sized server room in a corporate environment where you need a sure thing. Vertiv’s CoolPhase Wall is purpose-built for high-density edge deployments – ideal if you’re running a micro data center or telecom closet that absolutely cannot fail and you want that integrated monitoring and rapid Vertiv service. Go with these if you value peace of mind, robust redundancy options, and seamless integration into facility systems.
For Intelligent Redundancy on a Mid-Range Budget: Fujitsu’s Airstage (XLTH) shines here. It gives you automatic lead/lag control with two units, essentially delivering redundancy without extra controls – perfect for a small enterprise server room that wants high reliability at a reasonable cost. You get cold-climate performance and good efficiency too. If your server room is, say, <500 sqft with a few racks, a pair of Fujitsu units could be your uptime insurance without overspending on more complex systems.
For Large-Scale or Integrated Facilities: Daikin is the go-to if you’re outfitting multiple rooms or a larger facility and plan to integrate everything into a Building Management System. In a scenario like a campus data center with multiple IDF rooms, Daikin’s systems allow centralized monitoring and control – your facilities team can manage setpoints, get alarms, and even bill energy usage per unit if needed. Also, if energy efficiency and future refrigerant regulations are a big concern (for example, if you’re pursuing a green building certification), Daikin’s high SEER and R-32 options tick those boxes. Choose Daikin when you need scalability, top efficiency, and BMS connectivity across a deployment.
For Edge Computing and Remote Sites: Consider Vertiv CoolPhase or a Mitsubishi with rugged low-ambient features. Edge sites (like telecom shelters, modular data centers, ISP hubs) often face harsh conditions and may be unmanned – the CoolPhase’s extreme temp range and built-in monitoring are tailor-made for that. If those are out of reach financially, a more affordable alternative is pairing a GREE Vireo Gen3 with a simple remote monitoring setup (like a cellular temp alarm) – GREE will handle the cooling, and a separate sensor can alert you to issues. This combo can be a cost-effective solution for a remote radio equipment hut or a blockchain mining container, where budget and quick deployment matter.
For Small Business Server Rooms and Startups: GREE Vireo Gen3 is your friend. It delivers the cooling you need to protect your servers at a fraction of the cost of others. Let’s say you have a small finance firm or design studio with a 10×10 server room – a 24k BTU GREE unit could keep your servers cool through summer heat and winter freezesgreecomfort.com. Use the Wi-Fi app to check on it after hours. To hedge your bets, you could even install two smaller GREE units (e.g. two 12k BTUs on different circuits) for redundancy and still spend less than a single high-end unit. In these cases, simplicity and value trump advanced integration; what you need is reliable cooling that doesn’t break the bank, and GREE provides exactly that.
Special Considerations: Always factor in room size, heat load, and electrical infrastructure. Larger rooms or higher density may push you toward multiple units or a higher-capacity multi-split system (Daikin or Mitsubishi can do multi-zone; Vertiv can’t, so you’d do multiple units). If your room has existing ductwork or a need for ducted distribution (perhaps to direct cold air into specific rack aisles), a system with a ducted indoor unit (Mitsubishi P-Series has ducted options, Daikin and Fujitsu do as well) might be preferable to a wall unit. Also consider service and support: if you don’t have easy access to a Vertiv/Liebert technician in your area, leaning on more common brands like Mitsubishi/Daikin (which any commercial HVAC outfit can service) might be wiser. Conversely, if you have a service contract with Vertiv already, adding a CoolPhase unit to your portfolio might integrate smoothly.

In conclusion, match the system to your environment’s criticality and scale. A hyperscale data center might use chilled water CRAH units for primary cooling but mini-splits for ancillary rooms – in that case, a Daikin or Mitsubishi that ties into the existing BMS is ideal. A single-rack crypto mining rig in a garage, on the other hand, might just need a GREE and a watchful eye on a sensor. All the systems in our Top 5 will get the job done; it’s the nuances of redundancy, integration, and budget that determine the best fit. Use the detailed scores and analysis above to weigh what matters most for your scenario, and you’ll be able to navigate to the mini-split solution that keeps your data environment cool, safe, and running optimally around the clock. Good luck, and stay cool!netrinc.com greecomfort.com
